High pressure hoses - Wire spiralled reinforced hoses -SH |
TECHNICAL TAB |
|

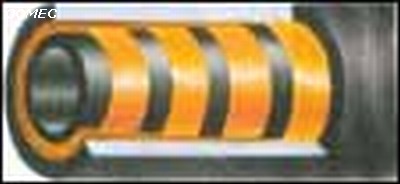

Click on image to enlarge |
| Application |
Wire spiralled reinforced hose for very high pressure power lines |
| Temperature |
-40° +100° (125° MAX) |
| Substrate |
oil resistant synthetic rubber |
| Inserts |
four high tensile steel braids |
| Covering |
oil and environment resistant synthetic rubber |
| Color |
Black |
|
|
TECHNICAL FEATURES |
| inch |
Internal Diameter
[mm] |
External Diameter
[mm] |
Max
P.E. [bar] |
Min
P.S. [bar] |
Weight (gr/mt) |
Radius of curvature
[mm] |
3/4" |
19 |
32,2 |
420 |
1680 |
1570 |
280 |
1" |
25,8 |
38,1 |
385 |
1540 |
2075 |
340 |
1" 1/4 |
31,8 |
45,5 |
350 |
1400 |
2530 |
460 |
1" 1/2 |
38,1 |
53,5 |
300 |
1200 |
3410 |
560 |
2" |
50,8 |
68 |
250 |
1000 |
4520 |
700 |
|
|
